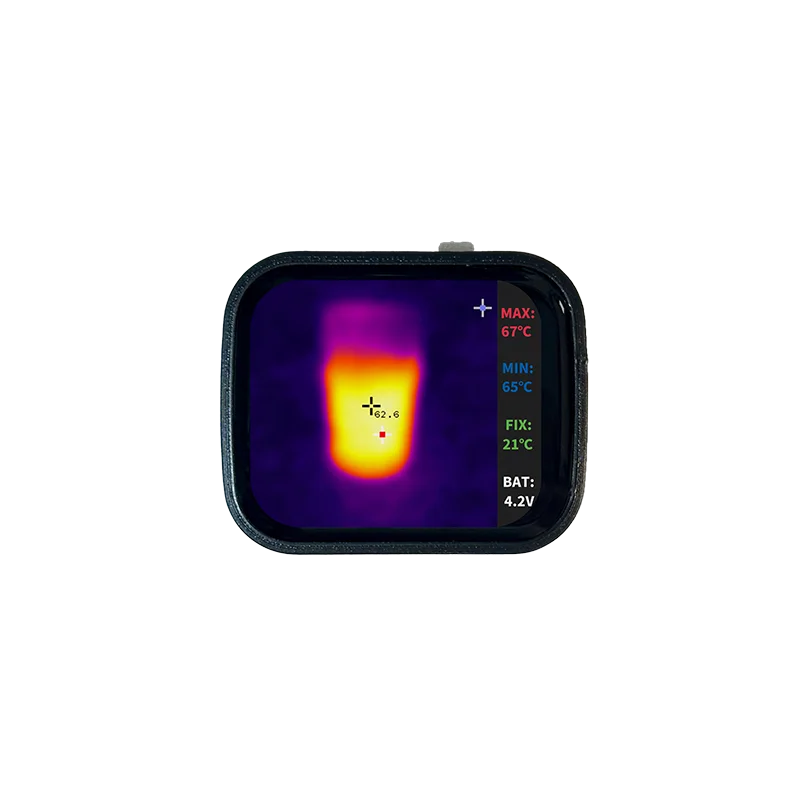

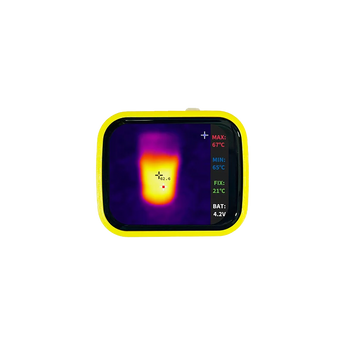

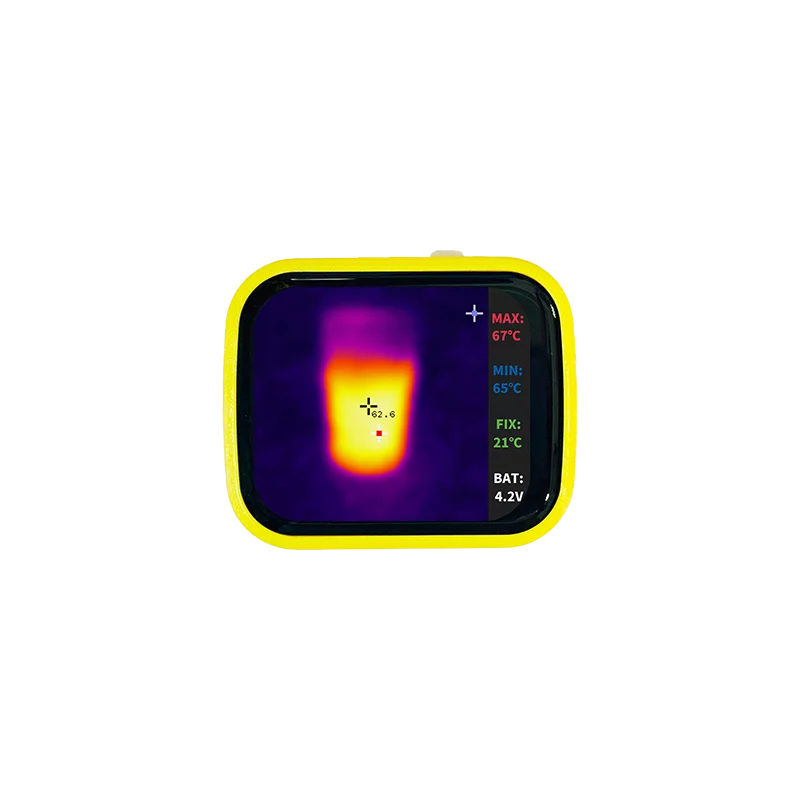

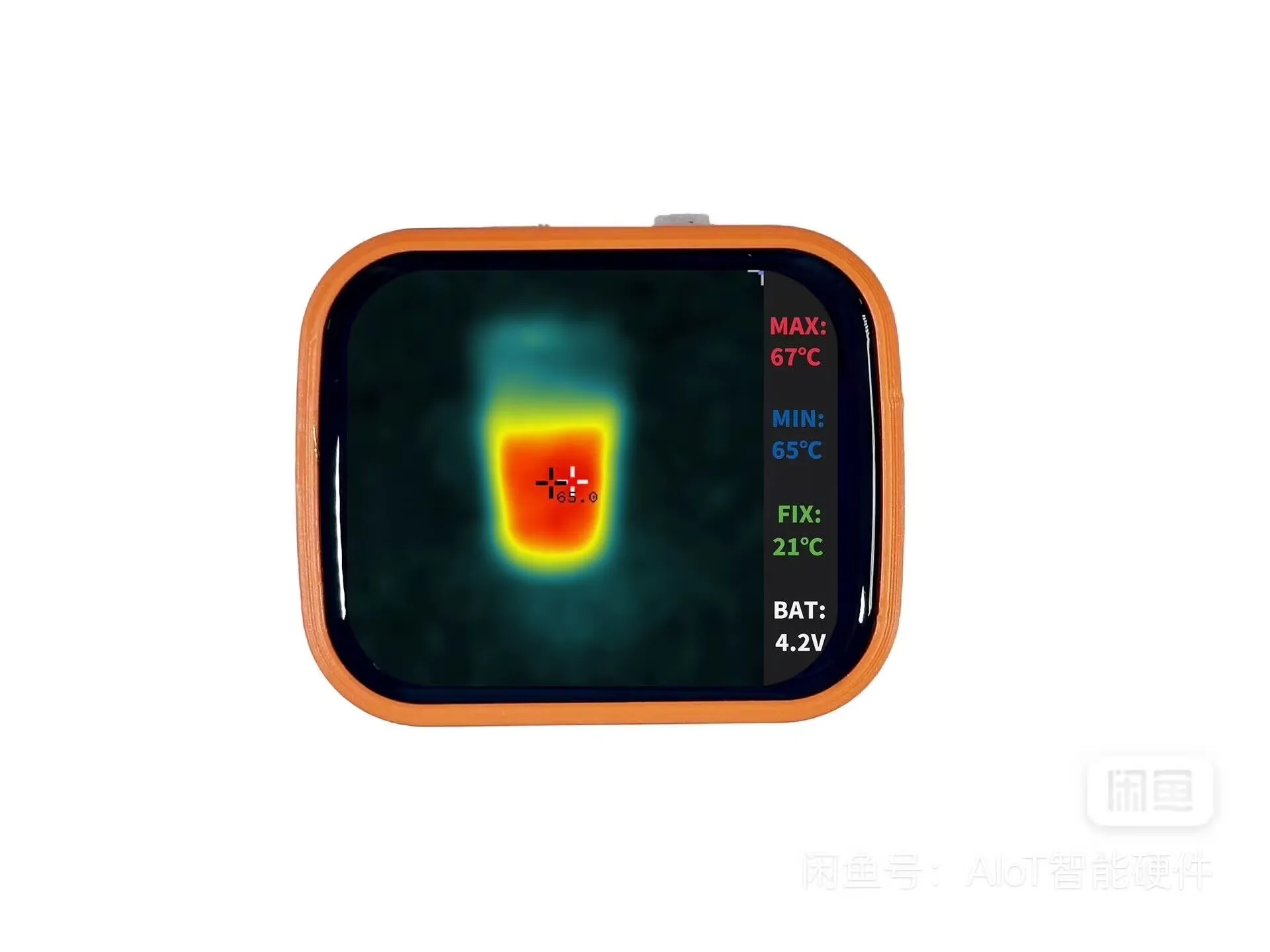

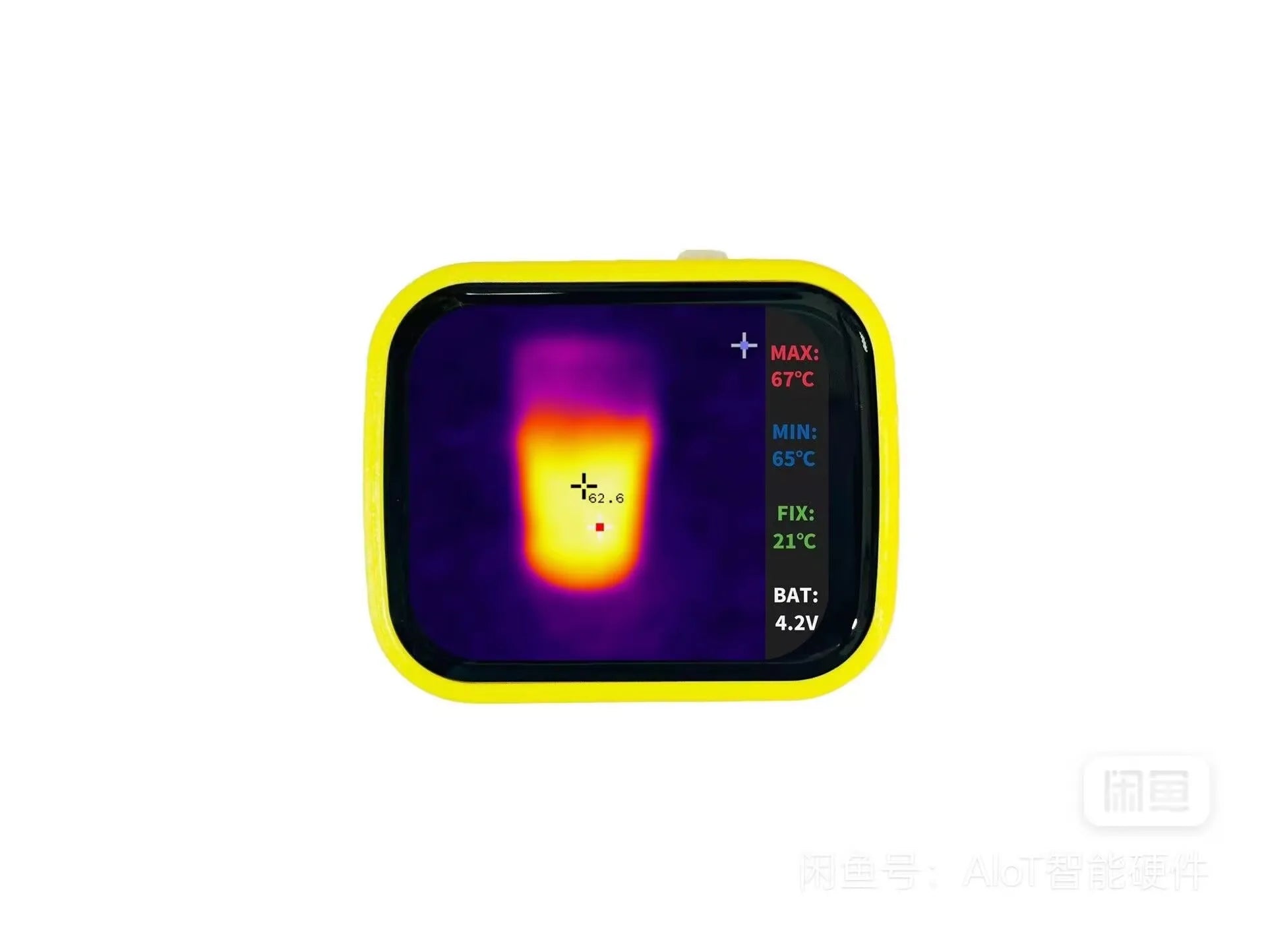

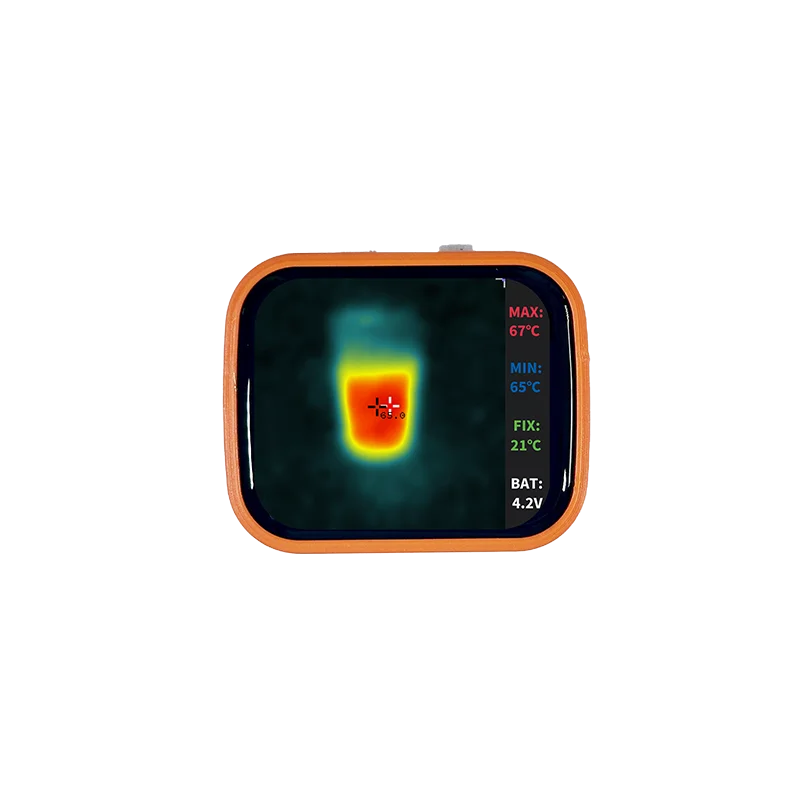

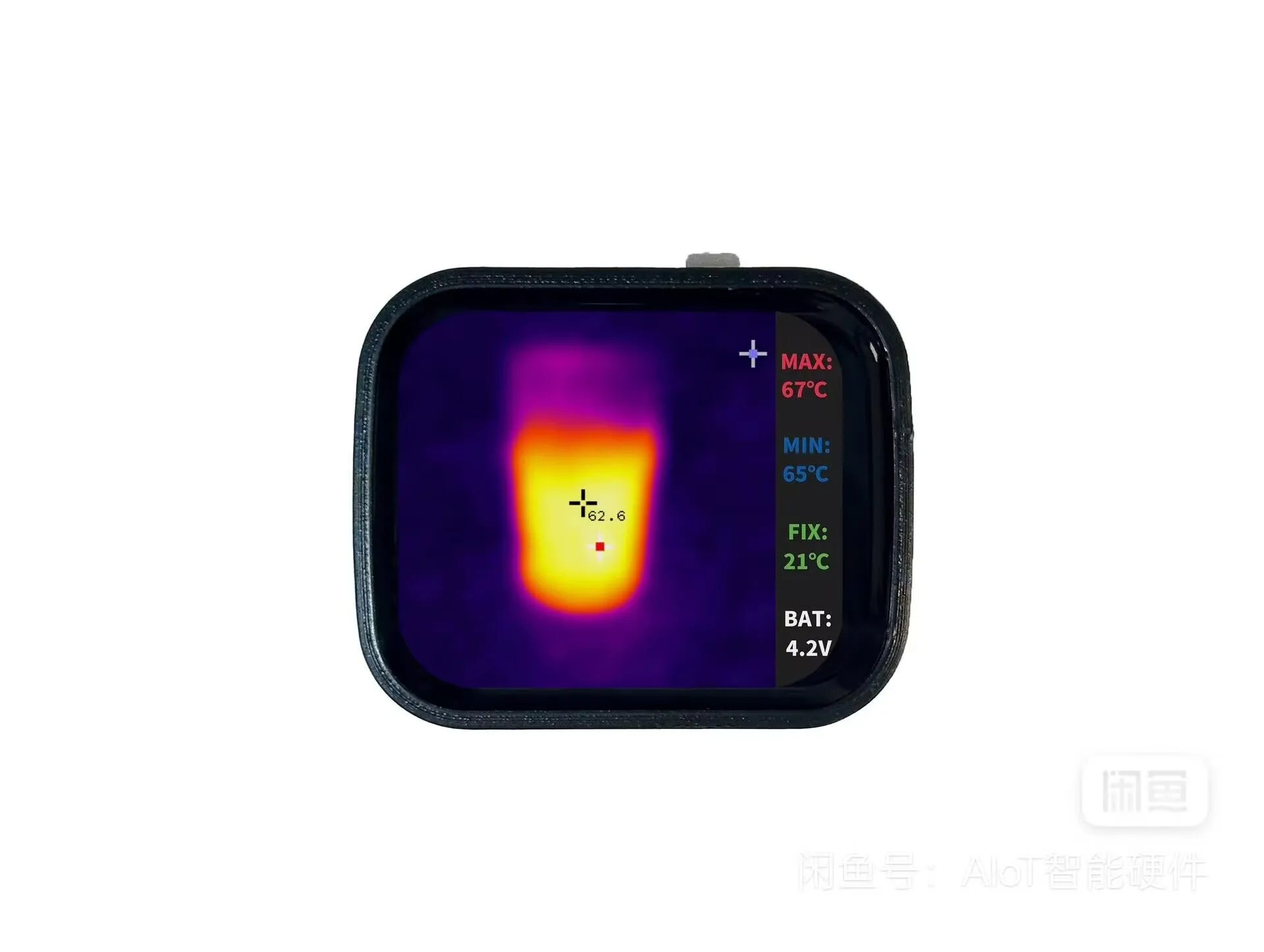

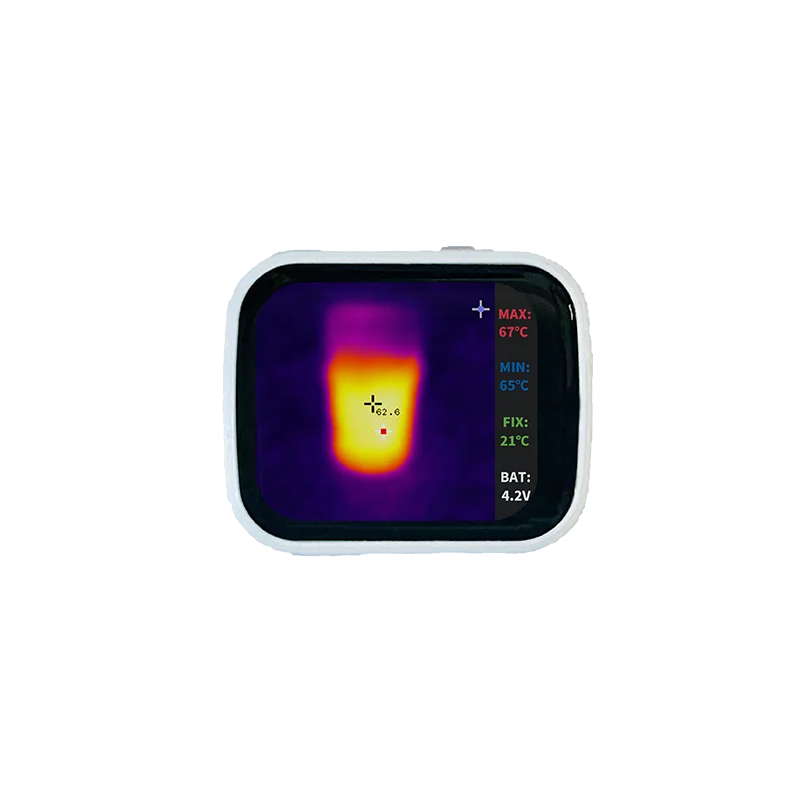

320 * 240 Touch Screen Mini Pocket Thermal Imaging Night Vision Device, Underfloor Heating Temperature and Leak Detector

Haiman mini pocket thermal imaging night vision device, underfloor heating temperature measurement leak detector, infrared anti peeping device, screen mirroring phone
Can be used for hotel privacy inspection, equipment temperature detection, plumbing maintenance, power maintenance, indoor cat and dog searching.



Long term stable software updates, any suggestions will be considered and adopted!

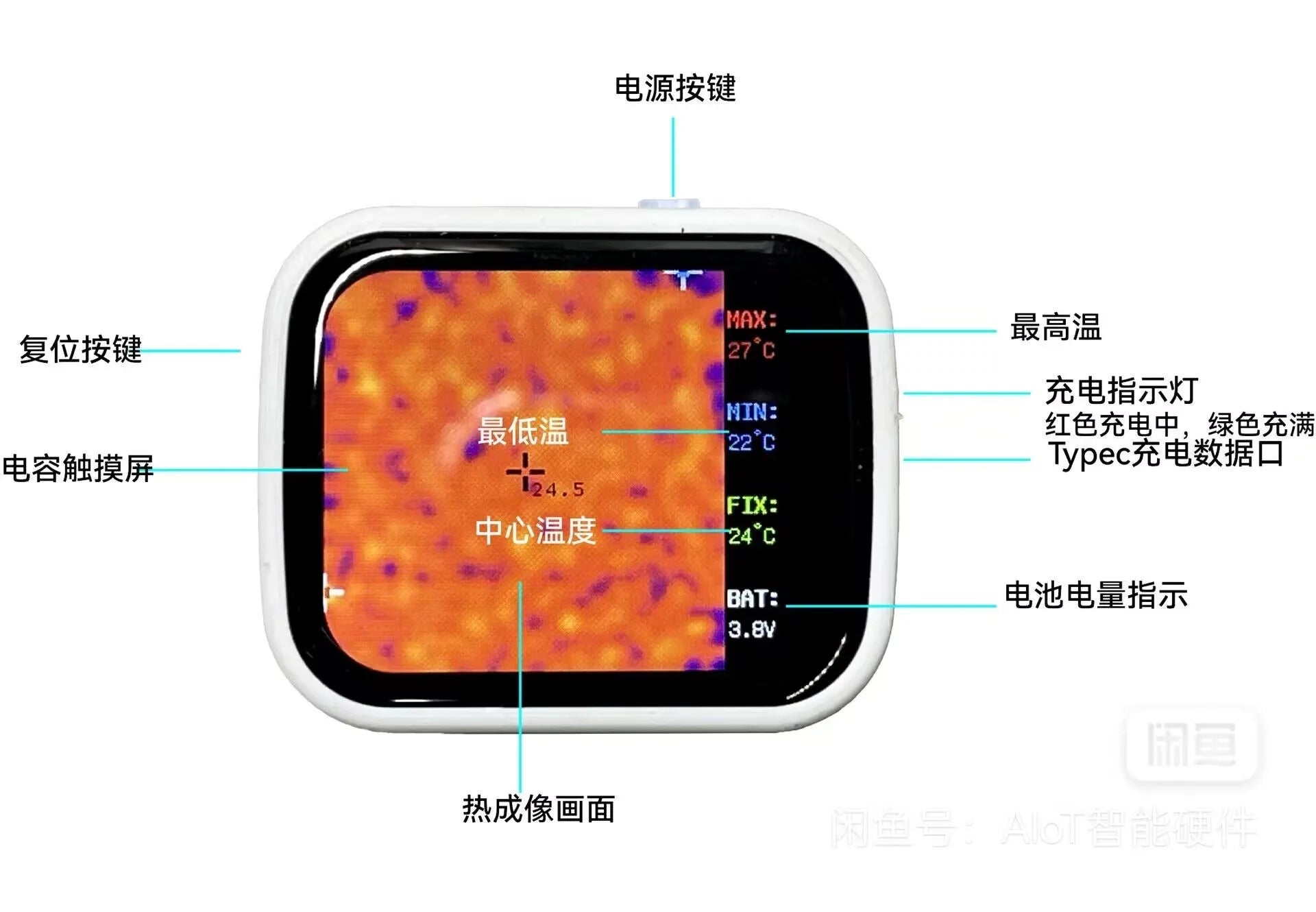

Screen resolution: 320 * 240 touch screen
Resolution: 32 * 32 (resolution after difference is 240 * 240)
Battery: 600mA (can work continuously for 3.5 hours, charge for 1.5 hours)
Temperature measurement range: -20~1000 ℃
Temperature measurement accuracy: ± 3 degrees
Frame rate: 7Hz
Pseudo color mode: 5 types
Interface: Type-C
Weight: 20g



Support emissivity adjustment for more accurate measurement of object temperature.
Supports gamma correction and can magnify details in low-temperature or high-temperature areas.
Supports displaying frame rates, with an average frame rate of up to 7.0FPS.
Support fixed-point temperature curve display and temperature data download for easy experimental observation.
Support manual temperature calibration by setting slope and intercept, and support automatic calibration of sensor errors.
The screen supports left and right mirroring, up and down mirroring, and 360 ° rotation, making it convenient to install or use from various angles.
Support automatic setting of temperature measurement range or manual adjustment of temperature measurement range.

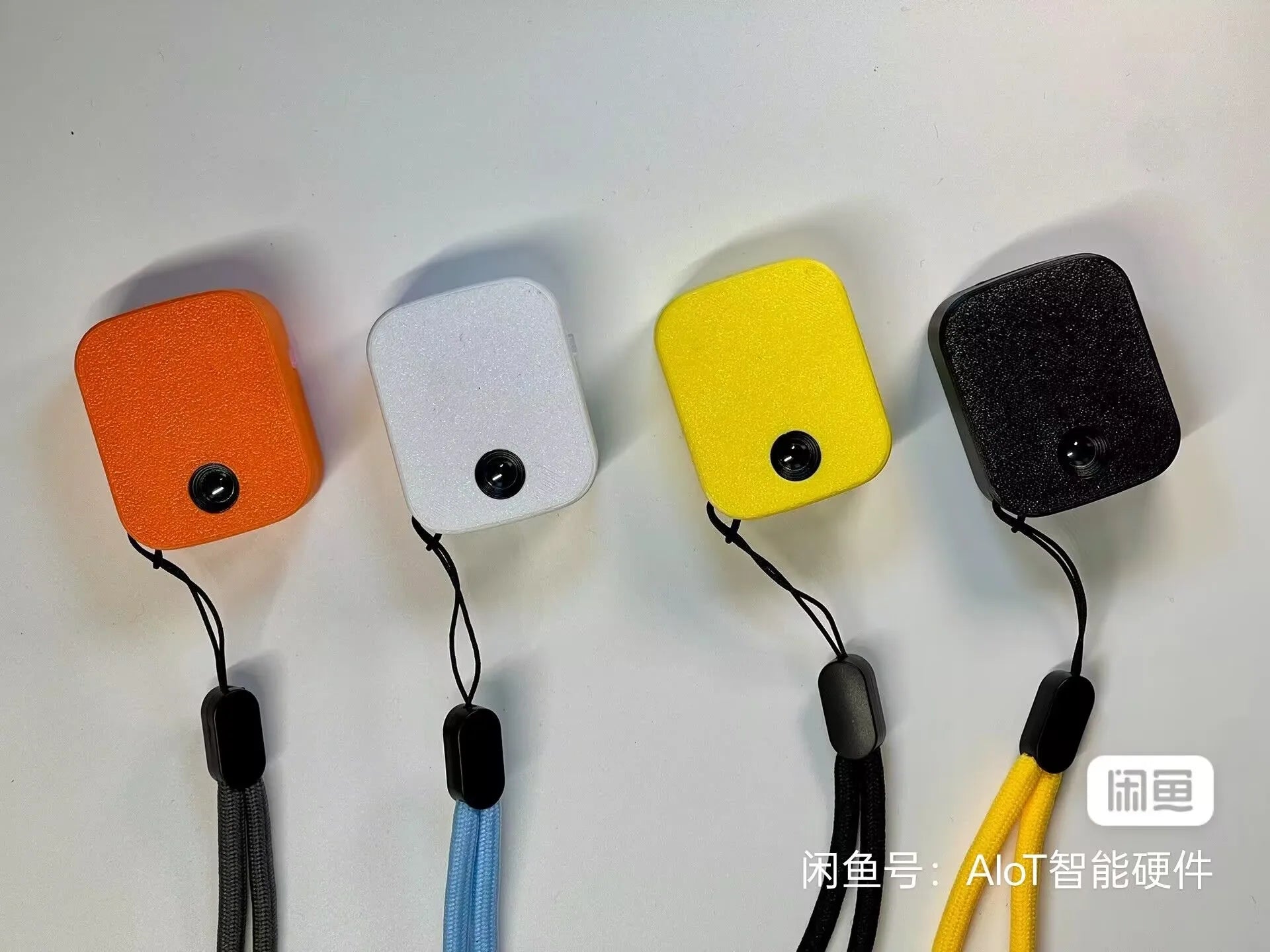

Ultra small product volume



Provide the source code of the upper computer, which can be connected to the upper computer through USB or TCP for easy development. Warranty: Three month warranty. Thermal imaging is a precision instrument with a very low failure rate and generally does not require biting.
