6 Inch IPS Soft Oled Flexible 2K Screen 2880X1440 Bendable Amoled Display for Smart Phone Device

Most of our clients are manufacturers purchasing our displays for their applications, who are willing to get samples as soon as possible.

Different products collocations have different package, please confirm the shipping cost with us when place an order.

(4~6 days for most countries and area)

For more specifications, such as display datasheet, IC datasheet, initial code, please contact us.

This display is assembled by professional LCD manufacturer-----Panox Display

Datasheets and code are available for most of our display products, feel free to consult.

Display Feature
-- AMOLED Display type
--MIPI-DSI 4 lanes
--BTB Connection
--This product accords with RoHS and REACH environmental criterion.

Application
Display/TP terminals for Cellular Phone

Compare to LCD, OLED has many advantages as follows:

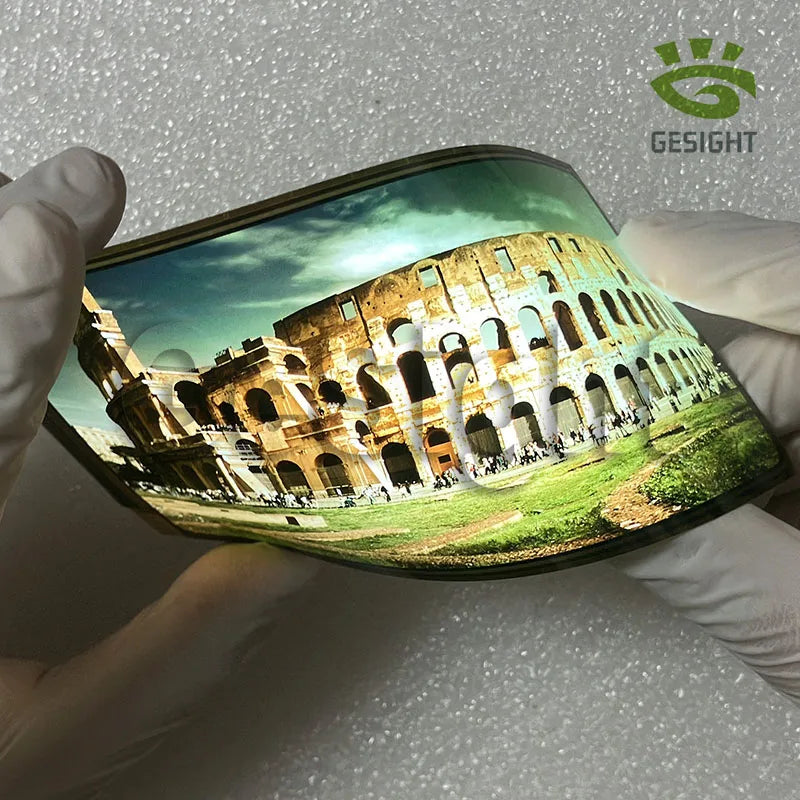

Thin Like Paper:More than 50% thinner and lighter than LCD, creating an edgy form factor in style.

Green Power:Clock-mode standby can be up to 60 hours, much lower consumption compare to LCD displays.

"Wow" Effect:High contrast ratio and wide color gamut offer sharp and vivid image, and consistent display from any angle.

OLED driver as well as two divided into passive (PMOLED) active (AMOLED), which PMOLED simple structure, each pixel is represented by a separate cathode and anode control, no additional driver circuit, but too much control lines restrict its application of high-resolution large screen; AMOLED entire cathode surface electrode via a drive circuit driving the light emitting anode, significantly reducing the number of control lines, it has a low-power, high-resolution, fast response and other characteristics, AMOLED therefore gradually become the mainstream OLED display.

For high-resolution AMOLED, the size of the driving circuit smaller and smaller, but the electrical performance requirements have become more sophisticated, conventional Si (Amorphous Silicon, A-Si) technology has been difficult to meet the requirements, and low-temperature polysilicon (low Temperature Poly Silicon, LTPS) a technical solution to this problem, the core is by an excimer laser annealing the amorphous silicon into polysilicon, has higher carrier mobility, lower defect density, the device in a small size can still have better electrical properties.

Gesight is a high-tech company specializing in OLED, LCD displays. Integrated with display marketing and sales, customized LCD OEM manufacturing, driver board development, customized TP, etc.

After six years of effort and development, we have grown up to a certain size, now we have a service team with excellent service quality, professional technical service.

After several years of steady development, Gesight has served hundreds of customers from different places all over the world. Including big companies such as Bosch, Nokia, Garmin, Circuits, and countless small and medium-size companies or electronics DIYers.

OLED/LCD OEM Factory
